BLX24R VOCAL SYSTEM WITH SM58

For performers who wish to unplug from the wire, BLX Wireless Systems are the clearest choice. Shure delivers wireless confidence with legendary sound from industry-renown microphones, decades of wireless design proficiency and world-class construction. Available in a wide offering of bodypack and handheld configurations (including vocal, guitar, headset and presenter system), BLX Wireless Systems are ready to perform right out of the box.

The BLX Wireless Vocal System from Shure joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the SM58 handheld microphone capsule. Legendary sound and performance, right out of the box.

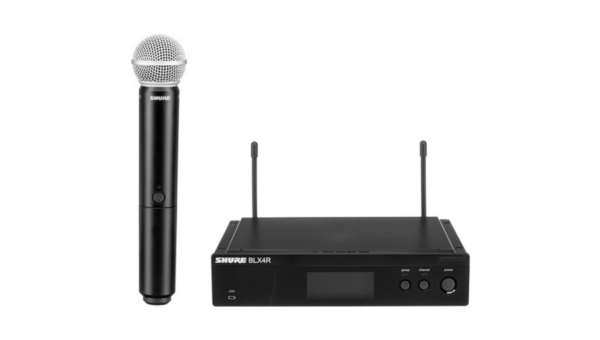

Shure BLX24R/SM58 Includes:

• BLX4R rack mount wireless receiver with rack mount kit
• SM58 handheld microphone with BLX2 transmitter
• Microphone clip
• PLEASE SELECT WHICH Frequency Band when ordering.

Shure BLX24R/SM58Features:

• BLX2 Transmitter:
  • Integrated microphone capsule design
  • -10 dB gain attenuation
  • Lightweight, rugged construction
  • Color ID caps (available separately)
  • Up to 14 hours of continuous use (2x AA batteries included)
  • Up to 300 feet (100m) transmission radius (line of sight)
  • Quick and easy frequency matching (GROUP and CHANNEL selection buttons)
  • Two-color transmitter status indicator LED
  • Green: “Ready”
  • Rapidly Flashing Red: “Controls Locked”
  • Solid Red: “Battery Power Low” (less than1 hour remaining)
  • Flashing Red/Power Down: “Batteries Dead” (replace batteries to repower transmitter)
• BLX4R Receiver:
  • One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
  • Up to 12 compatible systems per frequency band (region-dependent)
  • Two-color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload/clipping)
  • XLR and 1/4″ output connectors
  • Adjustable output level
  • Removable antennas for quick antenna distribution
  • LCD display with detailed RF and audio metering
  • Rugged metal construction, rack mount hardware included

Shure BLX24R/SM58 Specifications:

• Operating Range: 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
• Available Frequencies: Between 524 – 865 MHz (available frequencies depend on applicable regulations in country where system used)
• Audio Range: 50 – 15,000 Hz (dependent on microphone type)
• Transmitter RF Output Power: 10 mW, typical (varies by region)
• Audio Output Connector: XLR and 1/4″ (6.3 mm) unbalanced
• Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4″)
• Battery Life: Up to 14 hours
• Dynamic Range: 100 dB A-weighted
• System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
• Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
• Power Requirements:
  • BLX1: 2 AA alkaline or rechargeable batteries (included)
  • BLX4: 12 – 18 V DC at 150 mA, supplied by external power supply
