QSC K8.2 8″ 2-Way Active Speaker

The QSC K8.2 is an 8″, 2000W Class D active speaker. The QSC K8.2 is equipped with a 2000-watt power module carefully matched to an 8” high-performance woofer and compression drivers. DMT™ (Directivity-Matched Transition) ensures smooth coverage across the entire listening area. Advanced on-board DSP provides Intrinsic Correction™ voicing and advanced system management to further optimize performance. Superbly flexible, the K.2 Series provides its operators with a library of preset contours for common applications such as Stage Monitor, Dance Music, Musical Instrument Amplification, Hand-held Microphone and more, while also offering storable Scenes to recall user-configurable settings such as input type, delay, EQ, cross-over and selected contour. Operated as either main PA or as a floor monitor, each model can also be flown, wall- or truss-mounted, or placed on a speaker pole, either straight-firing or with 7.5° down-tilt. Rugged, lightweight, and incredibly stylish, the K.2 Series also features a global 6-year warranty with product registration.

Features

• 2-way active loudspeaker with 8″ woofer and 1.4″ titanium compression driver
• 2000W Class D amplifier
• Advanced onboard DSP
• Multiple positions/mounts allow use as a main or monitor

Specifications

• Configuration: Multi-purpose, 2-way powered loudspeaker
• LF Transducer: 8″ (203 mm), cone
• HF Transducer: 1.4″ (35.6 mm) titanium diaphragm compression driver
• Frequency Response (-6 dB): 59 Hz – 20 kHz
• Frequency Range (-10 dB): 55 Hz – 20 kHz
• Nominal Coverage Angle: 105° Axisymetric
• Maximum Rated SPL1: 128 dB @ 1 M, peak 122 dB @ 1 M, continuous
• Amplifier:
  • Class D
  • Peak: 1800 W (LF), 225 W (HF)
• Cooling: Low-noise, variable speed fan
• Controls:
  • Power
  • 3 x Level
  • Rotary encoder (push)
  • 2 x selection buttons
• Indicators:
  • Monochrome LCD Display 1.75″ x 1″ (45 x 25.4 mm)
  • 2 x Power LED (front and rear)
  • 3 x Input Signal LED
  • Input A Mic selected LED
  • Input B Hi-Z selected LED
  • Limiter active LED

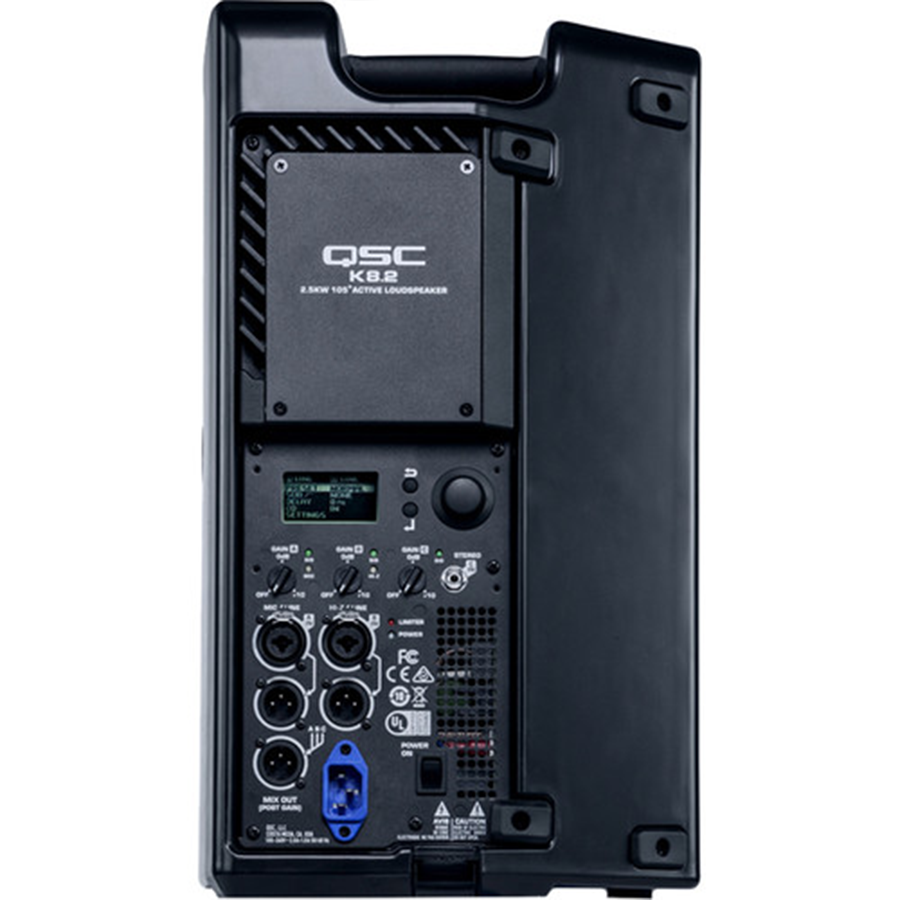

• Connectors:
  • 2 x locking XLR/F ¼” combo (Mic/Line Input and Hi-Z/Line Input)
  • 1 x 3.5 mm TRS (Stereo Input)
  • 2 x XLR/M (Loop-thru Output)
  • 1 x XLR/M (Mix Output)
  • 1 x locking IEC power connector
  • AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
  • AC Power Consumption 1/8th Power: 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
• Enclosure Enclosure: Impact Resistant ABS
• Attachment Points: 2 x M10 threaded inserts plus Pull-Back
• Color: Black (RAL 9011)
• Grille: 18 Gauge powered coated steel, internal cloth lining
• Dimensions (HxWxD): 17.7″ x 11″ x 10.6″ (449 x 280 x 269 mm)
• Net Weight: 12.2 kg (27 lbs)
• Shipping Weight: 14.4 kg (31.8 lbs)
