Price

$567.00

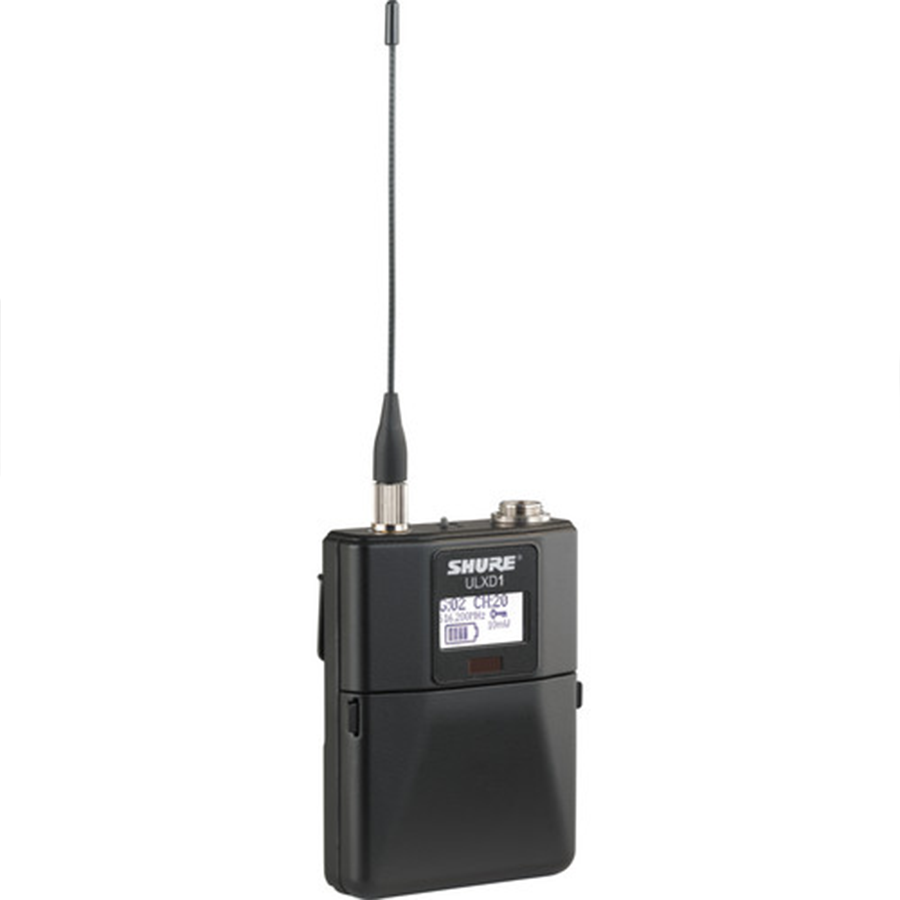

The Shure ULXD1 is a digital wireless bodypack transmitter compatible with ULX-D and QLX-D receivers. With rugged, yet lightweight aluminum housing, it delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D® Digital Wireless Systems. With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications. Operates in the G50 Band (470-532MHz).

Features

  • Operates in the G50 Band (470-532MHz)
  • AES 256-bit encryption for secure transmission
  • Proprietary Shure Gain Ranging optimizes dynamic range for any input source
  • SB900 Lithium-ion rechargeable battery provides up to 12 hours use
  • External charging contacts for docked charging

Specifications

  • Audio Input:
    • Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 Megaohm
    • Maximum Input Level, 1 kHz at 1% THD:
      • Pad Off: 8.5 dBV (7.5 Vpp)
      • Pad On: 20.5 dBV (30 Vpp)
    • Preamplifier Equivalent Input Noise (EIN), System Gain Setting =+20
    • 120 dBV, A-weighted, typical
  • RF Output:
    • Connector: SMA
    • Antenna Type: 1/4 wave
    • Impedance: 50 Ohms
    • Occupied Bandwidth: < 200 kHz
    • Modulation Type: Shure Proprietary Digital
    • Power: 1 mW, 10 mW, 20 mW
  • Other:
    • Audio Frequency Response: 20 Hz to 20 kHz (±1 dB), flat (Dependent on microphone type)
    • Operating Range: 300 ft (100 m)
    • Connector: 3-pin TQG
    • Gain Offset Range: 0 to 21 dB (in 3 dB steps)
    • Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries
    • Battery Runtime @ 10 mW”
      • Shure SB900: >12 hours
      • Alkaline: 11 hours
    • Dimensions (HxWxD): 3.4″ x 2.6″ x 0.9″ (86 mm x 66 mm x 23 mm)
    • Weight: 142 g (5.0 oz.), without batteries
    • Housing: Cast aluminum

Consumer Alert
Please be aware that certain systems or transmitters operating in the 617-652MHz or 663-698MHz frequency ranges are no longer in compliance with recent regulations set forth by the Federal Communications Commission (FCC). Contact our Sales Pros at 800-356-5844 for help choosing a compliant wireless system that fits your needs and to learn about available trade-in rebates. Details on current wireless regulations are available at www.fcc.gov/cgb/wirelessmicrophones.

Weight 2.2 lbs
Dimensions 12.6 × 4.8 × 3.3 in
