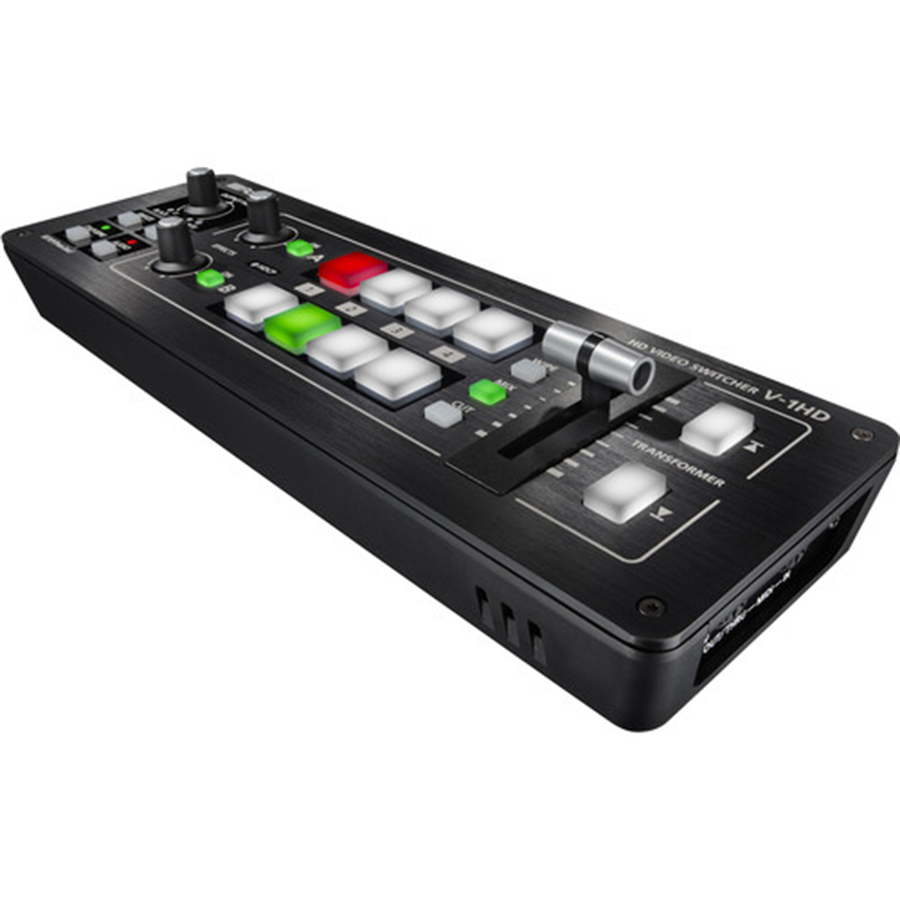

Roland‘s V-1HD 4 x HDMI Input Switcher is a portable solution for HD video production that accommodates up to four HD inputs. The inputs each have a frame buffer/TBC so you don’t need to genlock your input sources together. You can control the switcher manually by using the built-in controls, or connect it to a computer or iPad running optional software for electronic control. Select your working resolution and switch between your four input sources. Built into the switcher is a 12-channel audio mixer which can de-embed and embed audio signals from HDMI.

With the Roland V-1HD, it’s super easy to connect – then switch – a plethora of video devices, including: video cameras, video players, computers, tablets, smart phones, and many other HDMI video sources. You can switch up to four video sources either via push button or by sliding the T-Fader. With this portable, affordable, and powerful switcher you can perform professional compositing effects like picture-in-picture (PIP) and keying – which allows for graphic insets, titling, and even “green screen”, making this exceptional device ideal for all sorts of video production situations including corporate training, house of worship, news broadcast, and more. Also included are other advanced creative effects that can be used for transforming live event video into creative visuals to enhance performances of all kinds. Video mix output is as easy as connecting its HDMI output to a HDMI display or projector at an event or other location, as well as an HDMI recorder for event or production capture.

The V-1HD’s 4-way multi-view preview screen shows all four input sources, with a red border indicating the current Program output, and green border showing the video to be output next. In addition, the preview output offers three available types of view modes: Multi-view, Preview, and Output (which is a secondary program output). Plus, the on-screen display is on/off switchable. Its audio capabilities allow you to mix/embed audio onto its output or de-embed incoming HDMI audio. This remarkable unit is also remotely controllable with your PC, Mac, or iPad via USB (using the dedicated V-1HD RCS app), while MIDI functionality offers control from a MIDI sequencer or musical instrument. And, with its compact form factor, all this power can even fit nicely in a large pocket.


  • V-1HD Unit
  • Owner’s Manual
  • AC Adapter
  • Power Cord
  • Cord Hook


  • HDMI Inputs:
    • 4 x HDMI input connectors compatible with a large variety of equipment, with support for 1080p / 1080i / 720p video resolutions
    • Supports simultaneous input of both progressive (1080p) and interlace (1080i) signals
    • Progressive signal processing allows for video signal input from a PC
    • Supports HDCP
  • Easy-to-Use Interface:
    • Large, back-lit buttons allow for intuitive video switching even in low-light
      • Red lit buttons indicate current output source
      • Green lit buttons indicate video output on next transition
      • Non lit buttons indicate no video input present on that channel
    • Broadcast-style Preview / Program switching for professional results
    • TRANSFORMER buttons can be used for switching video instantly or applying effects
      • Buttons capable of 11 discrete functions
    • Transition effects can be applied by 3 buttons: CUT, MIX (4 types), and WIPE (30 types)
    • Auto scan function switches the video automatically across the 4 video inputs
    • T-Fader and BPM SYNC buttons allow visuals to be synced to music
    • Save or recall up to 8 presets with MEMORY button
    • FREEZE temporarily pauses incoming video
    • Output fade lets you fade video out to black or white
  • Effects:
    • PIP and video “split” functions
      • Composite 2 videos onto one screen – ideal for seminars and presentations
      • Chroma key and luminance key support
    • Two EFFECTS knobs provide genuine visual performance
      • Filter effects include: Silhouette, Colorpass, Negative, and Find Edge
    • Full Audio Mixer
      • 12-Channel digital audio mixer (4 x HDMI input audio + stereo line level and mic level input)
      • All channels equipped with a delay function for syncing video and audio (max delay time is 500ms)
      • Audio follow video function
      • Reverb and Mastering functions support adjustment of sound quality and volume
      • Audio output jacks allow sending audio to various external devices
    • Easy to operate Hardware Controls
    • Two HDMI Outputs
      • Program – main video output
      • Preview – shows 4-way multiview of input sources)
    • Remote Control via USB or MIDI


  • Video:
    • Video Processing: 4:2:2 (Y / Pb / Pr), 8-Bit
    • Input Connectors: HDMI Type A (19-Pin) x 4 (HDCP Supported)
    • Output Connectors: HDMI Type A (19-Pin) x 2 (HDCP Supported); Preview/Program
    • Input Formats:
      • HDMI: 720 / 59.94p, 720 / 50p (FORMAT switch =720p)
      • HDMI: 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p (FORMAT switch =1080i or 1080p
    • Output Formats:
      • HDMI: 720 / 59.94, 720 / 50p (FORMAT switch = 720p)
      • HDMI: 1080 / 59.94i, 1080 / 50i (FORMAT switch =1080i)
      • HDMI: 1080 / 59.94p, 1080 / 50p (FORMAT switch =1080p)
    • Video Effects:
      • Transition: CUT, MIX, (DISSOLVE / FAM / NAM / MOSAIC), WIPE (30 types), TRANSFORMER (11 types)
    • Audio:
      • Audio Processing: Sampling rate: 24-bit / 48kHz
      • Input Connectors:
        • Digital: HDMI INPUT 1-4 (19-Pin) x 4
        • Analog: AUDIO IN (RCA type), MIC (Stereo mini type, plug-in power supported)
      • Output Connectors:
        • Digital: HDMI OUTPUT (HDMI Type A, 19-Pin), HDMI PREVIEW (HDMI Type A, 19-Pin)
        • Analog: AUDIO OUT (RCA type), PHONES (Stereo mini type)
      • Input Level: AUDIO IN: -10dBu (Maximum: +8dBu), MIC: -41 – -13dBu (Maximum: -1dBu)
      • Input Impedance: AUDIO IN: 15kΩ. MIC: 10kΩ
      • Output Level: AUDIO OUT: -10dBu (Maximum: +8dBU), PHONES: 72mW + 72mW (32Ω)
      • Output Impedance: AUDIO OUT: 1kΩ, PHONES: 10Ω
      • Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
    • Other:
      • Connectors:
        • USB: B Type (for remote control from PC)
        • MIDI: IN, OUT/THRU
      • Functions:
        • MEMORY (8 types)
        • FREEZE (input video captured)
        • BPM SYNC (auto transition synchronized to tempo)
      • Power:
      • Current Draw: 1.5A
      • Consumption: 18W
    • Physical:
    • Dimensions (WxDxH): 12-1/3″ x 4″ x 2-1/3″ (313 x 102 x 59mm)
    • Weight (excluding AC adapter): 2lbs, 10.4oz (1.2kg)
Weight 5.25 lbs
Dimensions 16.3 × 9.45 × 5.25 in
